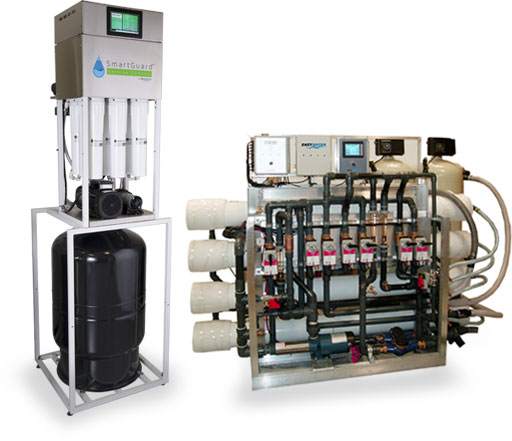

SmartGuard RO

An intelligent and dependable RO system that doesn’t require softener or chemical pretreatment.

SmartGuard RO is an intelligent water filtration system built to work hard and think hard so you get the water quality you need without the downtime and maintenance headaches associated with typical reverse osmosis systems.

SmartGuard RO Features & Benefits

Microprocessor Driven with Touch Screen

  • SmartGuard combines a powerful on-board microprocessor with digital sensors and custom firmware.
  • Measures and reports performance data, operation alarms and maintenance needs.
  • Touch screen display keeps you informed of system and filter condition and provides an on-board interface for making adjustments.
  • Dry contacts provide alarm connections for building monitoring systems.

Automatic TDS Blending

  • SmartGuard delivers a customized water profile.
  • Automatic TDS blending adjusts to provide consistent water quality according to your desired outlet TDS
    set point.
  • Dual output of different TDS water profiles available for applications requiring both pure RO water and partially remineralized RO water.
  • Both the raw RO permeate and blended/remineralized
    RO outlet quality are digitally measured and alarmed if outside of range.

Programmable Drain/Recovery Ratio

  • SmartGuard digitally calculates recovery and automatically adjusts drain flow to maintain a consistent ratio.
  • Automatically adjusts to changing feed water and filter conditions that can dramatically impact RO system performance.
  • Provides consistent recovery rate and maximizes water savings and filter life.

Automatic Bypass

  • Senses low tank volume and automatically bypasses itself.
  • Partially filtered or raw water is automatically delivered as needed while SmartGuard works to re-fill your tank.

Integrated Water Conditioning and Cleaning

  • SmartGuard eliminates the associated cost, regulation, and pollution from the use of chemicals and salt.
  • Our proprietary No-Salt Conditioner treatment is integrated in to the SmartGuard platform to reduce mineral and biological fouling.
  • Includes a high purity self-cleaning and purge cycle to extend filter life without salt or chemical pre-treatment.

Need a quick quote for a project?

SmartGuard RO Sizing Chart

Model #1 Nominal GPD Sizing2 Avg Permeate GPM3 Membrane Sizes & Array
SG-500 500 .3 3 - 3" x 10"
SG-1000 1,000 .6 3 - 3" x 15"
SG-2000 2,000 1.25 1 - 4" x 40"
SG-4000 4,000 2.5 2 - 4" x 40"
SG-6000 6,000 3.75 3 - 4" x 40"
SG-8000 8,000 5 4 - 4" x 40"
SG-12K 12,000 7.5 6 - 4" x 40"
SG-18K 18,000 11 3 - 8" x 40"
SG-24K 24,000 15 4 - 8" x 40"
SG-36K 36,000 22 6 - 8" x 40"
SG-48K 48,000 30 8 - 8" x 40"
SG-72K 72,000 45 12 - 8" x 40"
SG-96K 96,000 60 16 - 8" x 40"
SG-144K 144,000 90 24 - 8" x 40"
SG-192K 192,000 120 32 - 8" x 40"
SG-240K 240,000 150 40 - 8" x 40"
SG-288K 288,000 180 48 - 8" x 40"
SG-336K 336,000 210 56 - 8" x 40"
SG-384K 384,000 240 64 - 8" x 40"
SG-432K 432,000 270 72 - 8" x 40"
Compact sizes, storage tanks, delivery pumps, DI filtration, UV sanitization and .2 micron post filtration are among the many options available with SmartGuard RO. Contact EasyWater or local rep for more info.

1To select an RO Model #, first determine the maximum gallons per day (GPD) needed and the maximum gallons per hour (GPH) needed during peak usage. Next, determine the maximum flow rate (GPM) that needs to be delivered to the point of use. These design parameters are used to select the RO system Model #, storage tank capacity and delivery pump size to meet these GPD, GPH, and GPM demands.

2 As a general rule, the actual volume needed per day should not exceed 50% of the nominal rating. "Nominal GPD Sizing" is not a practical design parameter and is based on 24/7 operation with ideal pressure, temperature, TDS and filter condition.

3 "Avg Permeate GPM" gives a more realistic expectation of the average performance in actual operating conditions.

SmartGuard RO Related Projects

Need a quick quote for a project?

SmartGuard RO Literature Downloads

Sales Product Sheet

SmartGuard RO Product Sheet

i

Contact us for additional documentation such as manuals and drawings.
