CTF System
An innovative way to reduce scale, corrosion, bacteria and Legionella risk in cooling towers

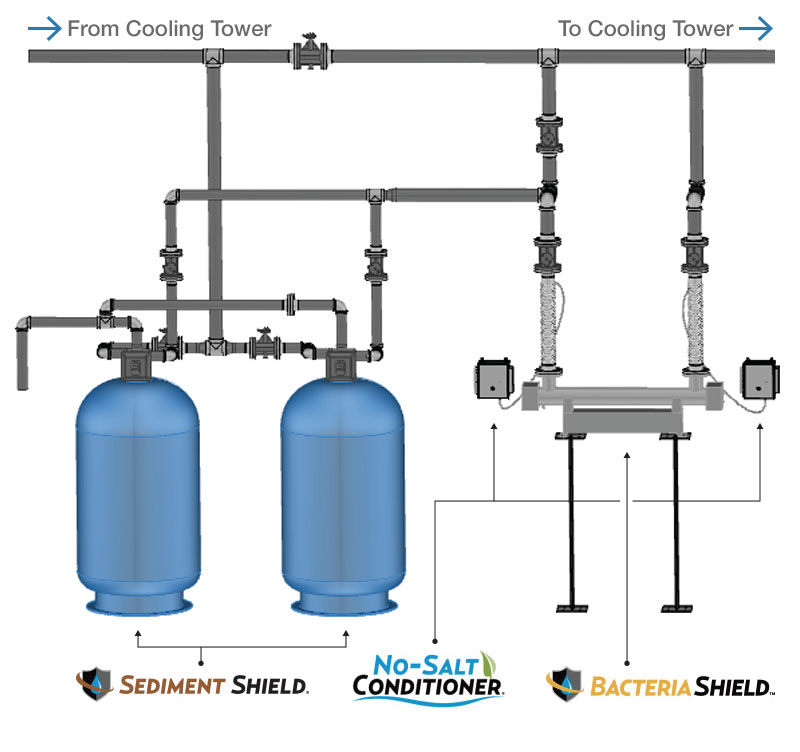

EasyWater’s CTF System is a unique, three-part solution for cooling tower filtration and treatment in a convenient, side-stream configuration. The CTF System utilizes EasyWater’s SedimentShield—a sub-micron, backwashing filter with proprietary media for the removal of sediment and bacteria; an ultraviolet chamber for bacterial sanitization; and EasyWater’s No Salt Conditioners to prevent and remove hard water scale deposits, biofilm, and bacteria.
Dramatic Results by CTF System in Under 2 Weeks for Shell Point Retirement Community
CTF System Features & Benefits
The 3 Major Problems in Cooling Tower Systems:
- Limescale deposits in condenser tubes, piping and cooling tower fill
- High corrosion rates
- High bacteria counts, biofilm and the presence of Legionella
How CTF Solves the 3 Major Problems in Cooling Tower Systems:
SedimentShield Sub-Micron Filtration
- Utilizes EasyWater’s sub-micron SedimentShield media, which is a proprietary blend of media that backwashes clean and does not harbor bacteria
- SedimentShield media has an expected life of 15+ years
- Removes over 99% of bacteria in the water
- Significantly reduces turbidity or cloudiness
in the water, which increases the effectiveness of the UV system - Sub-micron filtration results in cleaner sump basins (particles are not heavy enough to settle) and reduced Legionella risk
- Removal of bacteria through sub-micron
filtration and UV, results in extremely low bacteria counts, minimal biocide and
less corrosion
UltraViolet (UV) System
- Kills bacteria on contact
- Minimizes the use of biocides, which lowers corrosion rates and saves money
- UV provides highly effective sanitization and is protected from deposits and performance loss by the SedimentShield filtration and No-Salt Conditioner
No-Salt Conditioners
- Dramatically reduces or eliminates anti-scalant chemicals
- Helps remove scale and biofilm in the system, as well as in the UV, which helps maintain the rated effectiveness of the UV
- Minimizes system biofilm, which reduces Legionella risk
- Breaks down the cell wall of bacteria
- Causes flocculation of particles in the water, increasing filtration effectiveness
- Removes insulating limescale and biofilm from chiller condenser tubes, which saves 5% to 45%+ energy
Need a quick quote for a project?
CTF System Sizing Chart
Pre-plumbed and pre-wired on a steel skid
| Model # | Cooling Tower Tons1 | Cooling Tower GPM2 | Sidestream GPM |
|---|---|---|---|
| CTF-15-S | 80 | 240 | 12 |
| CTF-25-S | 167 | 500 | 25 |
| CTF-50-S | 333 | 1,000 | 50 |
| CTF-75-S | 500 | 1,500 | 75 |
| CTF-100-S | 667 | 2,000 | 100 |
| CTF-150-S | 1,000 | 3,000 | 150 |
| CTF-185-S | 1,233 | 3,700 | 185 |
| CTF-235-S | 1,567 | 4,700 | 235 |
| CTF-300-S | 2,000 | 6,000 | 300 |
| CTF-360-S | 2,400 | 7,200 | 360 |
| CTF-425-S | 2,833 | 8,500 | 425 |
| CTF-500-S | 3,333 | 10,000 | 500 |
| CTF-580-S | 3,867 | 11,600 | 580 |
| Model selection can vary based on water quality and system volume.
Options such as stainless tanks, piping and skids along with dual pumps and various control options are available upon request. Contact EasyWater or local rep for more information. 1Total cooling tower tons based on peak load. |
|||
Individual components are plumbed and wired on site
| Model # | Cooling Tower Tons1 | Cooling Tower GPM2 | Sidestream GPM |
|---|---|---|---|
| CTF-12 | 80 | 240 | 12 |
| CTF-20 | 133 | 400 | 20 |
| CTF-35 | 233 | 700 | 35 |
| CTF-50 | 333 | 1,000 | 50 |
| CTF-75 | 500 | 1,500 | 75 |
| CTF-100 | 667 | 2,000 | 100 |
| CTF-150 | 1,000 | 3,000 | 150 |
| CTF-185 | 1,233 | 3,700 | 185 |
| CTF-200 | 1,333 | 4,000 | 200 |
| CTF-235 | 1,567 | 4,700 | 235 |
| CTF-300 | 2,000 | 6,000 | 300 |
| CTF-350 | 2,333 | 7,000 | 350 |
| CTF-425 | 2,833 | 8,500 | 425 |
| CTF-450 | 3,000 | 9,000 | 450 |
| CTF-500 | 3,333 | 10,000 | 500 |
| CTF-580 | 3,867 | 11,6000 | 580 |
| CTF-600 | 4,000 | 12,000 | 600 |
| Model selection can vary based on water quality and system volume.
Options such as stainless tanks along with dual pumps and various control options are available upon request. Contact EasyWater or local rep for more information. 1Total cooling tower tons based on peak load. |
|||
“In less than 3 weeks of CTF treatment, the bacteria levels went from 105 to 100, and Legionella from 1,790 to None.“
— Boca Raton Regional Hospital
CTF System Related Projects
Need a quick quote for a project?

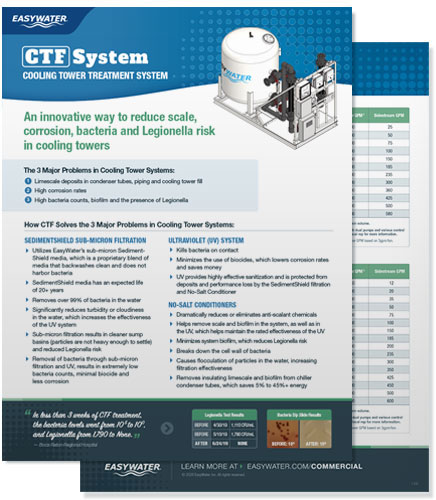

CTF System Literature Downloads
